Specifications

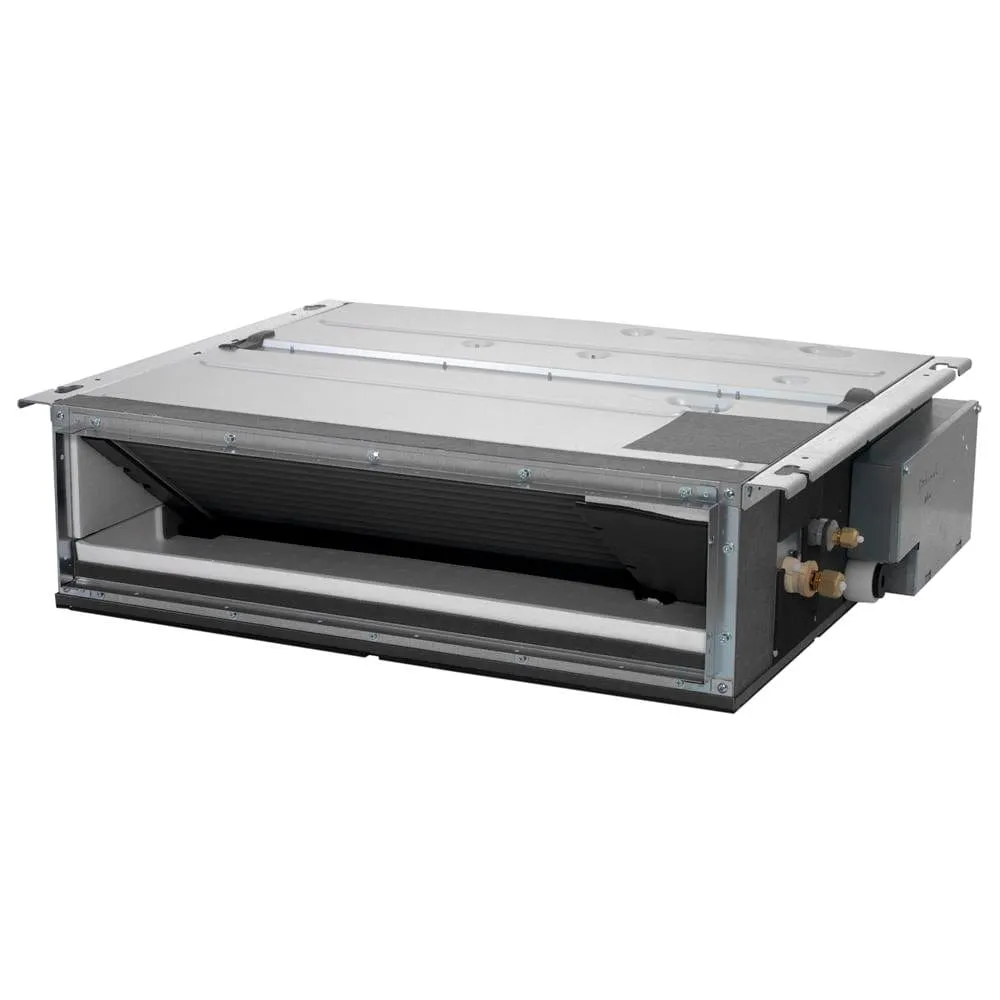

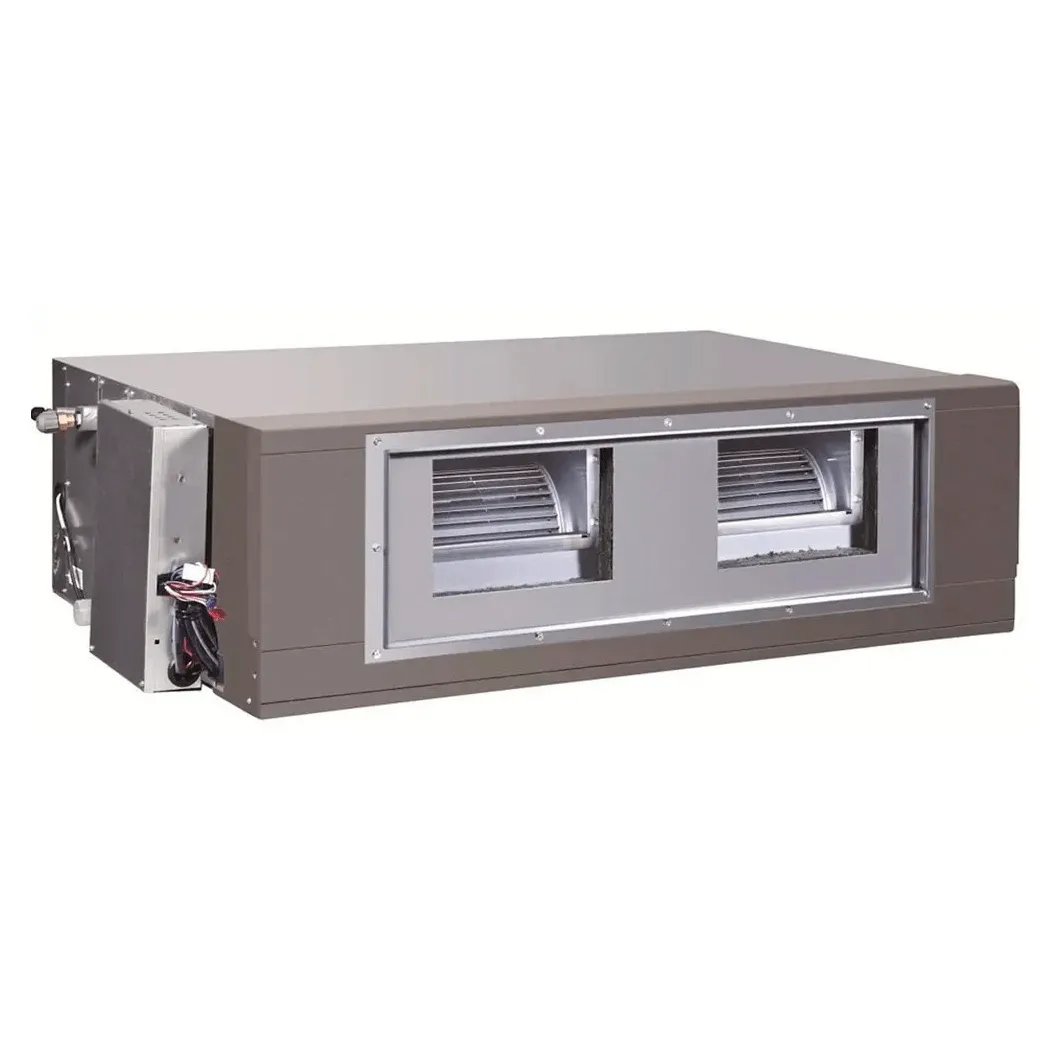

• Model Type: Ducted Recessed Indoor Unit
• Air Consumption: 24 ft³/min
• Frequency: 60 Hz
• Voltage: 208-230 V
• Current: 0.79/0.79 A
• Number of Speeds:5
• Nominal Cooling Capacity: 24,000 Btu/h
• Cooling Capacity: 24,000 Btu/h
• Nominal Heating Capacity: 24,000 Btu/h
• Heating Capacity: 24,000 Btu/h
• Power Supply: 208-230 V/ 60 Hz / 1 Phase
• Power Consumption (Rated): 160 W
• Power Factor (Rated): 92.8 %
• Fan Type: Sirocco fan
• Fan Motor Output: 130 W
• Fan Speed: 5 Steps, Quiet, Auto
• Temperature Control: Microcomputer Control
• Air Filter: Removable / Washable / Mildew Proof
• Heat Insulation: Both Liquid and Gas Pipes
• Sound Pressure Level (H/M/L) - Cooling: 38 / 36 / 34 / 32 dBA
• Sound Pressure Level (H/M/L) - Heating: 38 / 36 / 34 / 32 dBA
• Airflow Rate (H): 565/565 ft³/min
• Airflow Rate (M): 523/523 ft³/min
• Airflow Rate (L): 565/565 ft³/min
• Airflow Rate (SL): 523/523 ft³/min
• Cooling Input Power: 0.160 kW
• Heating Input Power: 0.160 kW
• Rated Cooling Conditions
• Ambient (°F DB/WB): 95 / 75
• Indoor (°F DB/WB): 80 / 67
• Rated Heating Conditions
• Ambient (°F DB/WB): 47 / 43
• Indoor (°F DB/WB): 70 / 60
• Chargeless: 32.8 ft
• Amount of Additional Charge of Refrigerant: 0.21 oz/ft
• Sound Power Level: 51 dBA
• External Static Pressure: 40 Pa
• Weight: 66 lb
• Gross Weight: 84 lb

Dimensions

• Depth: 24-7/16 in
• Width: 43-7/16 in
• Height: 7-7/8 in
• Pipe Connections - Liquid: 1/4 in
• Pipe Connections - Gas: 5/8 in
• Pipe Connections - Drain: 25/32 in
• Pipe Connections - Drain O.D.: 1-1/32 in
• Max. Interunit Height Difference: 49.2 ft
• Max. Interunit Piping Length: 65.6 ft
• Packaged Depth: 30-1/4 in
• Packaged Width: 52-1/16 in
• Packaged Height: 10-1/2 in

Features

• Static capability up to 0.16" W.G.
• Rear or bottom return
• Econo Mode for increased energy savings
• 12 year limited parts and compressor warranty with online registration

Benefits

• Compact design
• LCD wireless remote with backlit display
